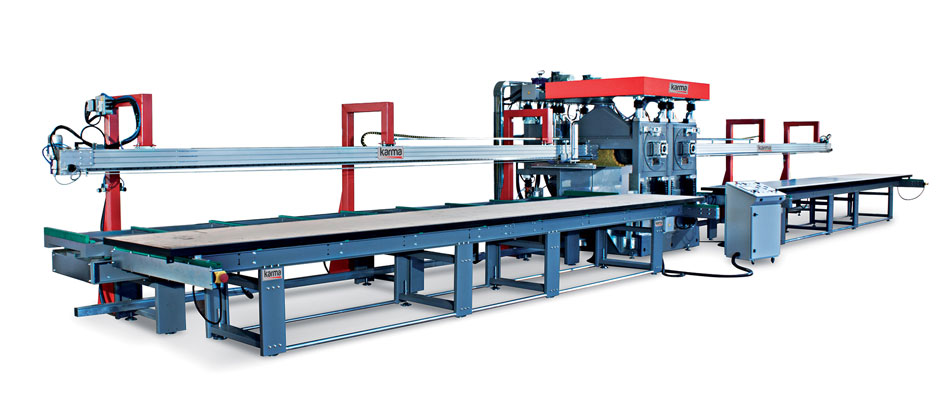

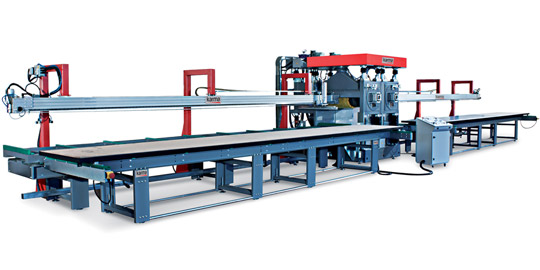

ZAK 2
◾ Equipped with 2 polishing brushes
◾ Each brush is operated and controlled independently
◾ Brushes are driven by 2 electric motors (37 kW/each)
◾ Rotation speed can be adjusted invariably by means of inverters
◾ 1000 mm table width. Other table widths are optionally available
◾ Many operating functions such as number of work cycles, brush pressure etc. controlled by PLC
◾ Brush pressure on the work piece is constantly maintained by automatic control
◾ Carriage's movement speed can be adjusted by means of inverter
◾ Brushes can make oscillation movement to remove extrusion lines when necessary
◾ PLC controlled paste spraying system
◾ Other various optional features
Developed for effortlessly making special high gloss decorative effects on the aluminum surfaces.
In order to meet the exact needs of every individual application we are able to offer the most suitable solution to our customers thanking to our wide variety of polishing machine choices;
◾ Polishing with 2 Brush
◾ Polishing with 3 Brush
◾ Polishing with 4 Brush
◾ Different table widths

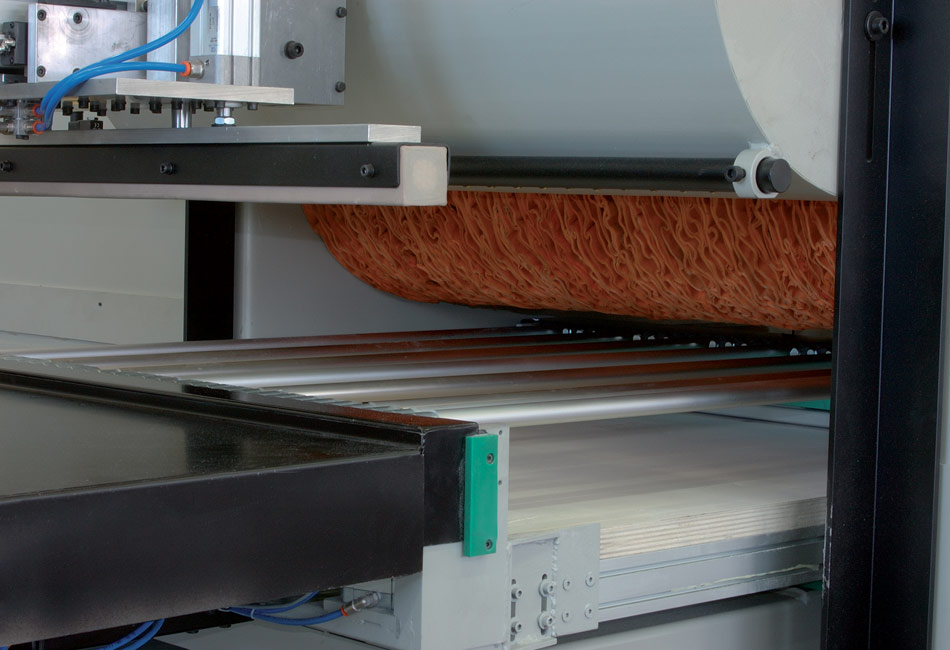

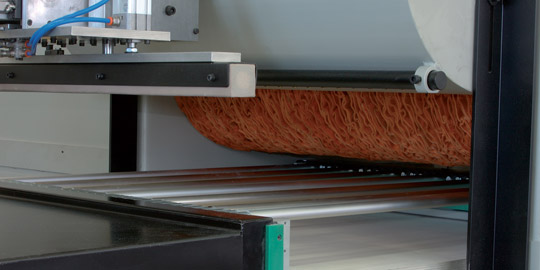

During the polishing process the shining effect is achieved by repeatedly brushing the profiles with cotton discs and at the same time by applying polishing paste on the surface.
Depending on the desired gloss appearance on the aluminum surface the polishing cycle is repeated several times.
The natural oxide layer formed during the time when the profiles are stocked is removed at the beginning of the mechanical polishing procedure.
Once the surface is cleaned and surface becomes free from oxide layer and flawless then the surface is further smoothened by means of further polishing cycles to obtain a satisfactory.
