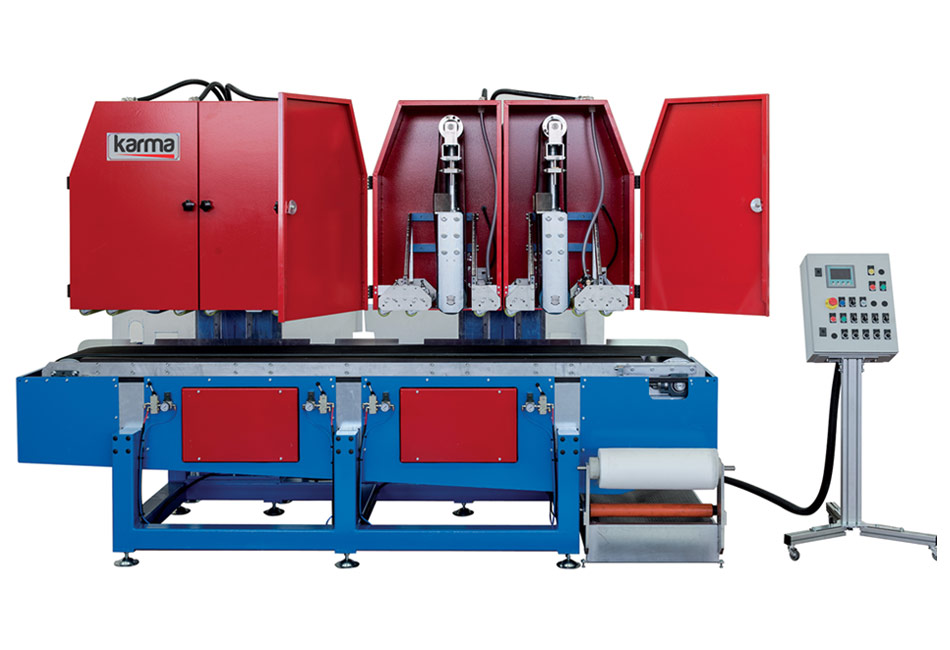

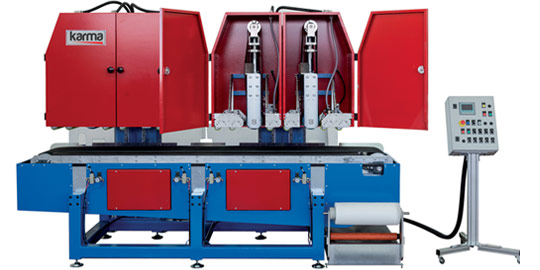

SM 4
◾ Equipped with 4 grinding belts
◾ Each belt is operated and controlled independently
◾ Belts are driven by 4 electric motors (4 kW/each)
◾ Belt rotation and conveyor speed can be adjusted invariably by means of inverters
◾ The grinding belts are changed quickly by means of automatic disengagement of the tensioner piston
◾ The belt is lubricated through the nozzle placed in the proximity of each belt
◾ The cooling liquid is recovered and filtered in the storage tank
◾ Depending on the desired surface effect canvas or Scotch-brite belts can be used.
◾ Other various optional features
Grinding machines developed to create special decorative effects (i.e. stainless-steel appearance) on the aluminum surfaces which remains visible after anodizing process.
Grinding surface is obtained by using abrasive belts, which can be more aggressive or less aggressive depending on the targeted surface effect.
The difference between the appearances of grinded surface and brushed surface can be defined as follows;
◾ Grinded surface: Brief, irregular and discontinuous scratching lines
◾ Brushed surface: Regular and continuous scratching lines
In order to meet the exact needs of every individual application we are able to offer the most suitable solution to our customers thanking to our wide variety of grinding machine choices;
◾ 4 Grinding Heads
◾ 3 Grinding Heads + 2 Brushes
◾ Angled Grinding Heads and/or Brushes
