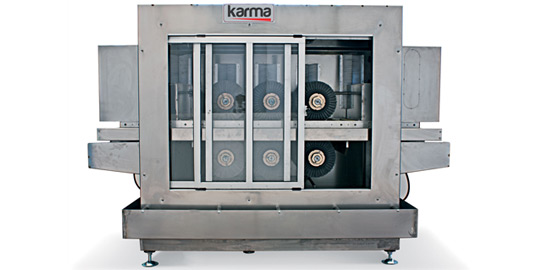

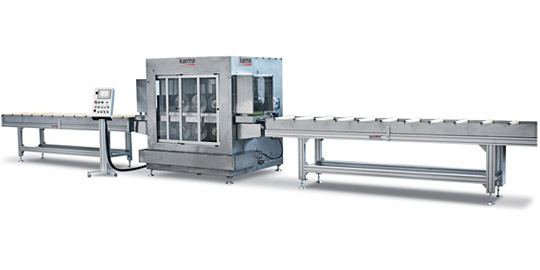

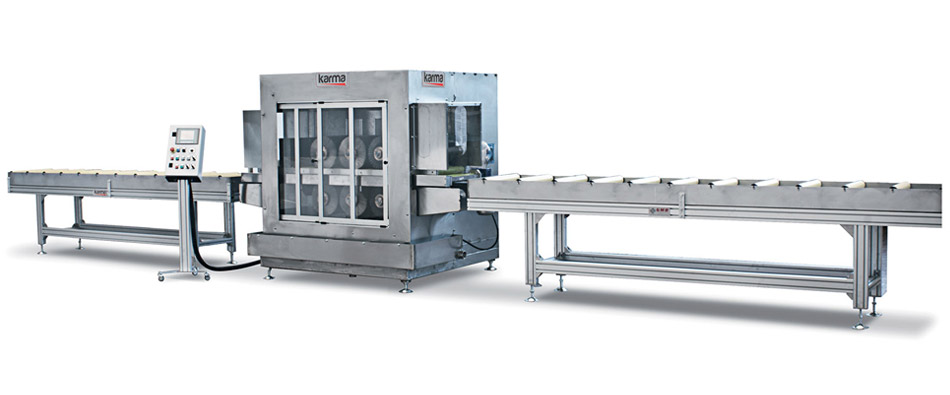

SAT 3
◾ With 6 brushes; 3 upper and 3 lower
◾ Suitable to clean profiles before painting or to remove extrusion mistakes before anodizing process.
◾ It is possible to adjust the pressure of all brushes at one time
◾ Brushes are driven by 6 electric motors (2.2 kW/each)
◾ Rotation speed can be adjusted by means of inverters for each brush separately.
◾ 300 mm table working width.
◾ Profiles moved by a roller conveyor with 11 rollers.
◾ Conveyor system makes it possible to work with thin profiles.
◾ Brushes types possible to use with;
- Stainless steel
- Tinex
- Scotchbrite
Developed to create special decorative satin-mat effects on the aluminum surfaces which remains visible after anodizing process.
Faults such as extrusion lines, scratches occurred during handling or poor quality of the raw aluminum before the final treatment such as painting or anodizing can be removed by brushing machine.
To obtain various types of satin-finish surfaces different types of brushes are used;
◾ Stainless steel wires with different thicknesses (or diameters)
◾ Tinex brushes (plastic wire saturated in abrasive substance)
To meet the exact needs of every individual application we are able to offer the most suitable solution to our customers thanking to our wide variety of brushing machine choices;
◾ Brushing with 3 + 3 Brush)
◾ Brushing with 4 + 4 Brush
◾ Brushing with 5 + 5 Brush
◾ Brushing with 6 + 6 Brush
Depending on the desired appearance on the aluminum surface combination of different brushes can be used.
